Cured-In-Place Pipe (CIPP) lining

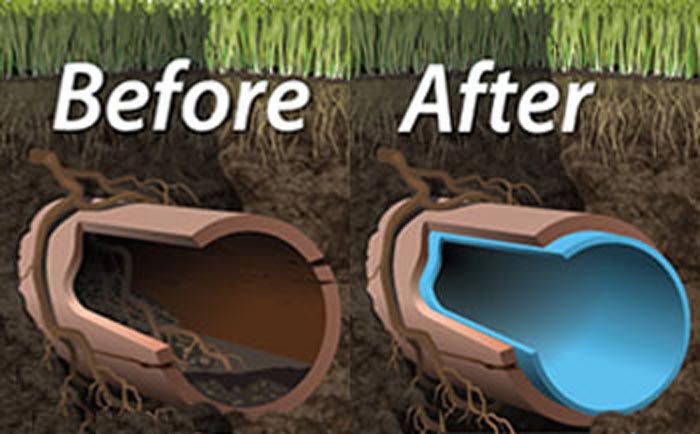

Cured-In-Place Pipe (CIPP) lining represents the pinnacle of trenchless rehabilitation technology, utilizing advanced thermosetting resins and fiber-reinforced materials to create structurally independent pipe systems within existing infrastructure.

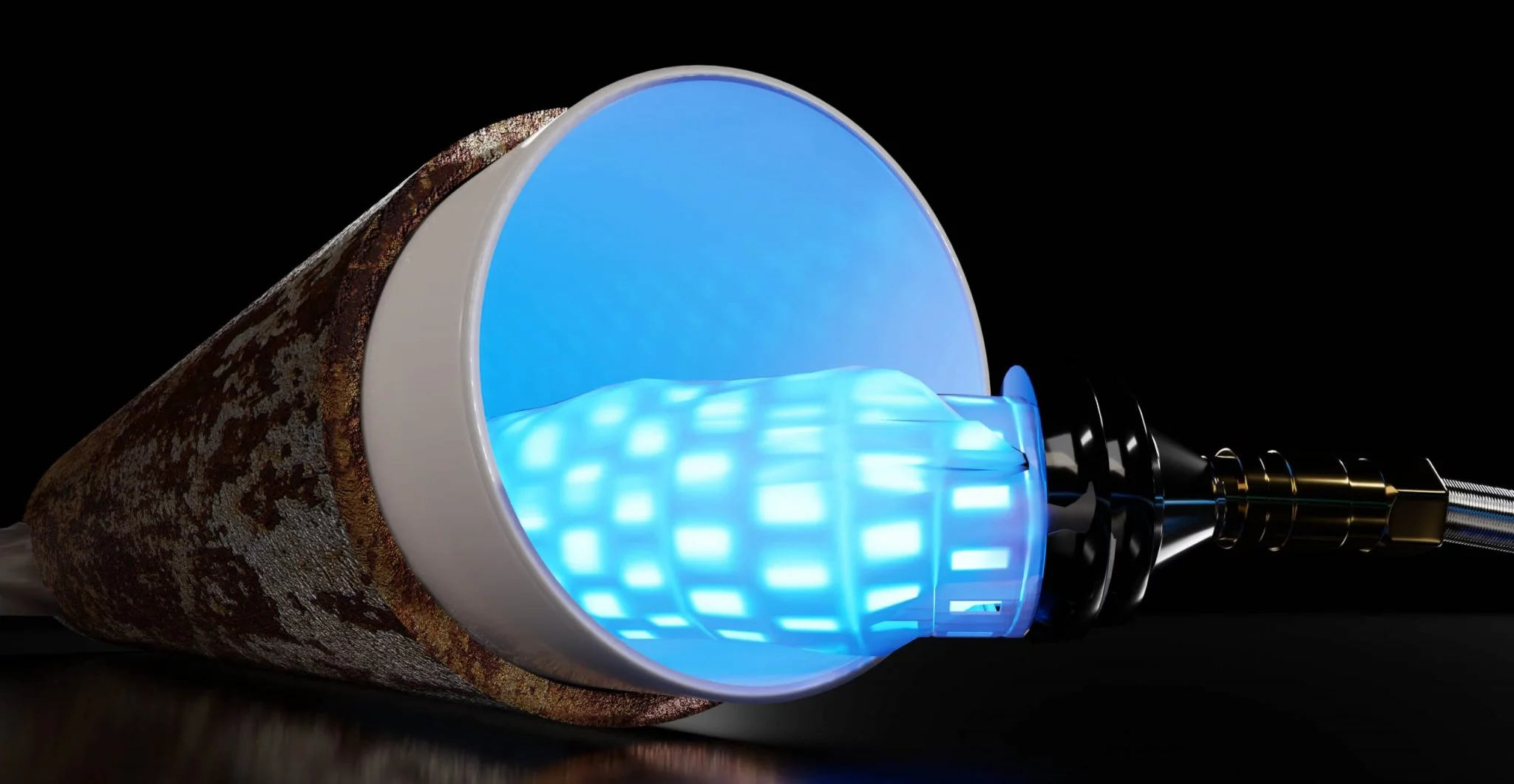

Our CIPP installation process employs precision-engineered felt liners impregnated with vinyl ester or epoxy resins, designed to withstand extreme temperature variations (up to 50°C ambient). The process begins with comprehensive robotic cleaning using 4000 PSI water jetting, followed by detailed condition assessment using pan-tilt-zoom cameras with laser profiling. Liner installation utilizes either steam curing (105°C) or UV LED curing systems, creating a monolithic structure with tensile strength exceeding 55 MPa. Our specialized formulations account for high groundwater salinity and aggressive soil conditions.
Technical Specifications & Features:
– Structural Class IV rated liners meeting ASTM F1216 standards
– UV-resistant resins engineered for 50°C+ desert conditions
– Hydrostatic pressure rating up to 15 bar for deep installations
– Chemical resistance to H2S and aggressive groundwater
– Precision thickness control: 6-25mm wall thickness options
– Zero excavation technology preserving landscaping and infrastructure
– 50+ year design life with comprehensive performance warranties
– Cost reduction up to 60% compared to conventional replacement
– Installation capacity: 100mm-2400mm diameter, lengths up to 300m
– Meets international building code requirements and municipal standards
– Root intrusion resistance with smooth interior (Manning’s n=0.009)
– Thermal expansion joints integrated for climate conditions
Specialized Applications:
Engineered for challenging environments including high ambient temperatures, corrosive groundwater, and sandy soil conditions. Ideal for aging concrete and clay infrastructure in urban areas. Particularly effective for deep sewer mains (6m+ depth) where excavation costs are prohibitive.
